When choosing a metal roof, thickness is one of the most important details to understand. The gauge of a panel directly influences its strength, weight, and expected service life, yet many homeowners and contractors find the terminology confusing.
A higher gauge number means a thinner sheet, while lower numbers indicate thicker and more durable panels. This guide will explain how gauge works, what common thickness levels mean, and why selecting the right measurement can impact both performance and long-term value.

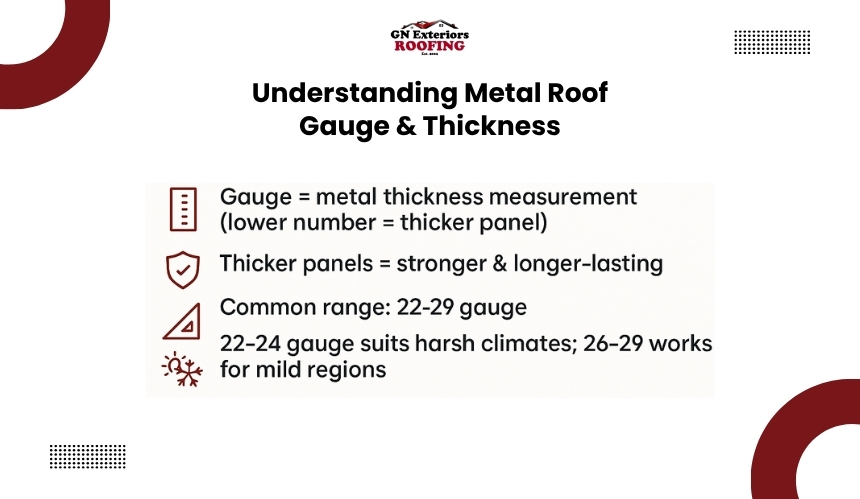

Before evaluating performance or cost, it’s important to understand how thickness is classified. Roofing metals are measured using the gauge system, which provides a standardized way to compare panel thickness across different materials.
A trusted metal roofing contractor can help homeowners interpret these numbers and select the best option for their specific project.
Gauge indicates the thickness of a roofing panel, with lower numbers reflecting thicker sheets. For example, 22-gauge is heavier and sturdier than 29-gauge. While this system is commonly applied to steel, actual thickness values can vary slightly depending on the material.
Gauge is not a direct measurement in inches or millimeters, but it can be converted. For instance, 24-gauge steel is approximately 0.0239 inches thick, while 29-gauge measures closer to 0.0149 inches. Conversions like these make it easier to compare roofing panels from different manufacturers.
Most roofing applications fall between 22 and 29 gauge. Heavier 22–24 gauge panels are common in regions exposed to high winds, hail, or snow, while lighter 26–29 gauge panels are often chosen for residential projects where cost and ease of handling are priorities.

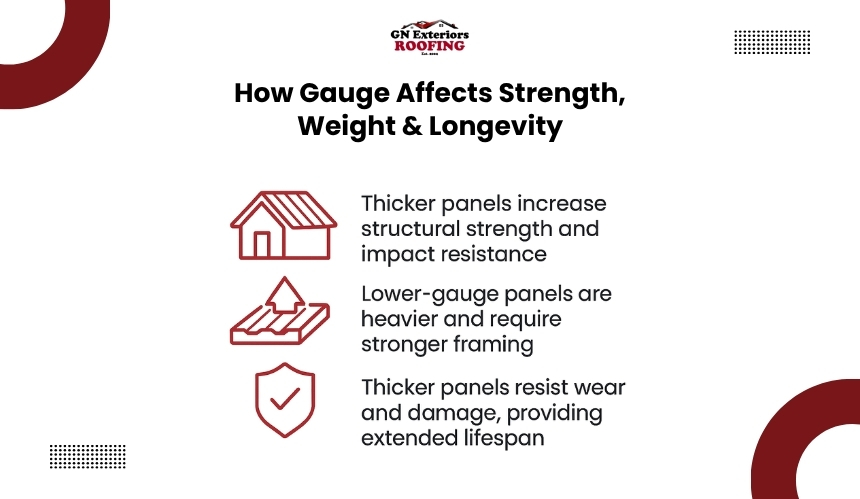

Once the basic ranges are clear, the next step is to understand how panel thickness influences performance over time. The choice of gauge directly affects the roof’s ability to withstand environmental stress, its installation requirements, and its expected service life.
Thicker panels deliver greater structural strength and impact resistance. In storm-prone areas, lower-gauge metal can better resist denting from hail and buckling under high winds. This added durability makes thicker options preferable in demanding climates or for large-span commercial projects.
Gauge also determines weight, which influences installation and the structural demands on a building. Heavier panels offer more stability but may require stronger framing and professional handling. Lighter gauges reduce the weight load and are easier to install, which is why they are often selected for smaller residential roofs.
The thickness of a panel is closely tied to its longevity. Lower-gauge roofing tends to last longer because it resists corrosion and physical damage more effectively. While thinner panels can still perform well in mild climates, thicker roofing provides an extended service life, often making it the more economical choice over decades of use.

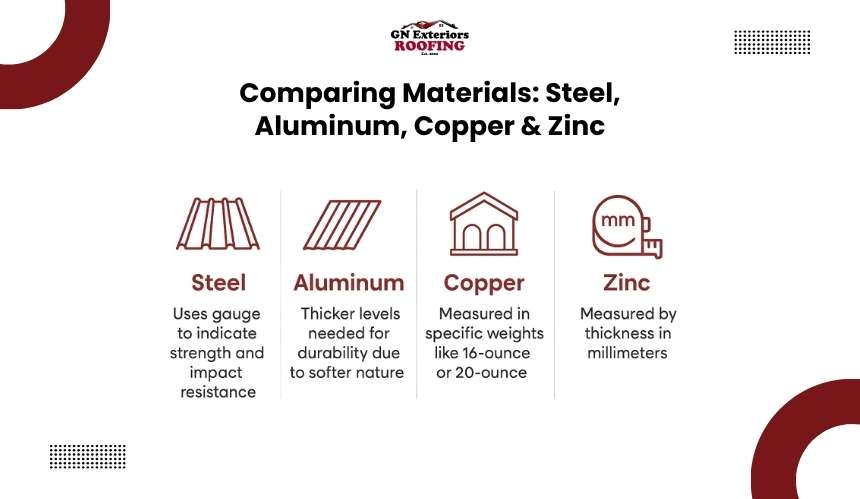

The effect of gauge is not the same across all metals. Each roofing material has unique properties that influence how thickness contributes to durability, cost, and appearance. Understanding these variations helps homeowners and contractors choose the best fit for specific conditions.
Steel is the most widely used material in metal roofing. In steel, gauge directly relates to both structural strength and impact resistance.
A 24-gauge steel panel is strong enough for regions with heavy snowfall and high winds, while a 26 or 29 gauge may be sufficient in milder climates. Protective coatings such as galvanized or galvalume layers also extend the lifespan of thinner steel panels.
Aluminum is naturally lighter and more corrosion-resistant than steel, making it a strong choice for coastal regions. However, because it is softer, aluminum often requires thicker panels to achieve the same durability. For example, 0.032-inch aluminum (roughly equal to 24-gauge steel) may be recommended for homes in hurricane-prone areas.
Copper roofing is valued for its long life and natural patina, rather than sheer strength. It is typically produced in specific thicknesses such as 16-ounce or 20-ounce copper, which are not expressed in steel gauge numbers. Thicker copper sheets enhance longevity and resistance to denting, making them suitable for high-end residential or historic projects.
Like copper, zinc is not measured using the steel gauge system but in millimeters. Thicker zinc panels improve resistance to cracking and oil canning, especially in climates with temperature swings. Its self-healing patina adds protection, so even thinner zinc panels can perform well when installed correctly.

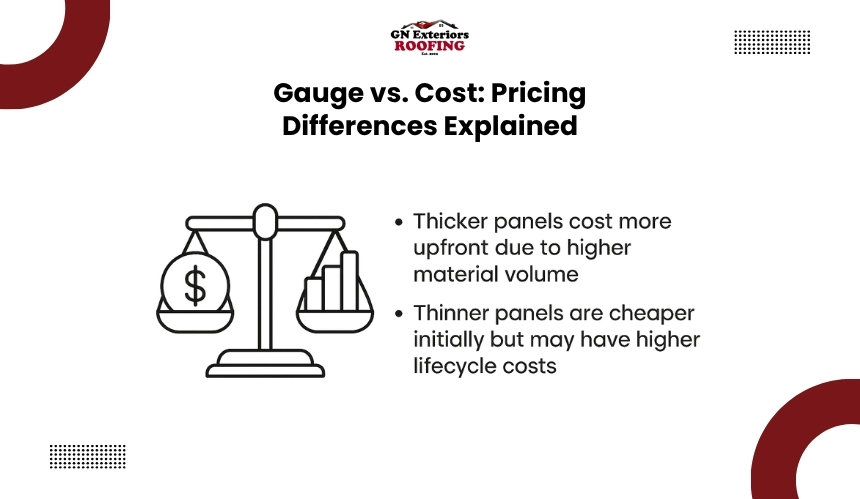

For many property owners, the cost of a roofing system is one of the most decisive factors. Metal roof gauge has a direct impact on pricing, not only because of the raw material used but also due to installation requirements and long-term performance.
On average, metal roofing panels range between $1.75 and $5.50 per square foot, depending on the gauge and material. Thicker panels, such as 22–24 gauge, are at the higher end of this range, while thinner 29-gauge panels fall closer to the lower end.
For a typical 2,000-square-foot home, this means the difference in upfront cost between 24 gauge and 29 gauge can be several thousand dollars. The added expense reflects the increased durability and lifespan built into lower-gauge roofing.
While thicker panels usually cost more upfront, they can reduce future expenses. Homeowners often save on repairs, repainting, or early replacements because thicker panels resist wear and damage more effectively. This makes them a better investment in regions where roofing stress is high.
A thinner 29-gauge roof may have a lower initial price, but its shorter lifespan can lead to earlier replacement and higher total ownership cost. A mid-range 24–26 gauge roof often provides the best balance, offering a manageable upfront price with extended durability that pays off over decades.

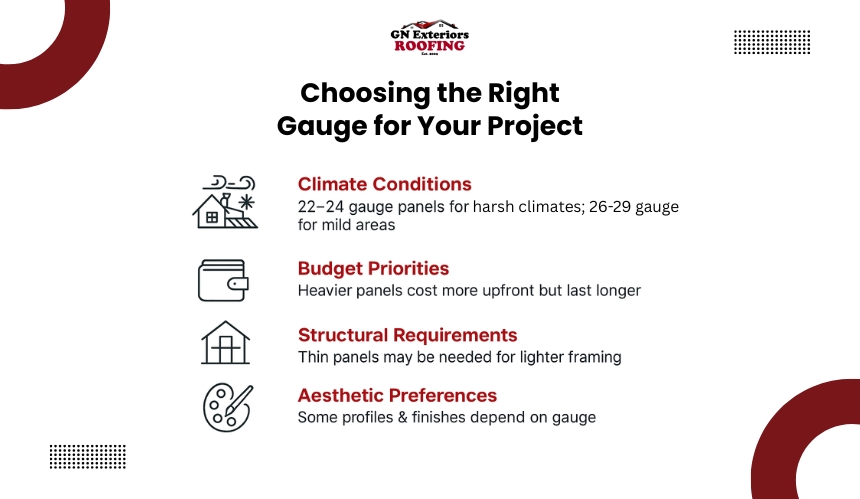

Selecting the correct gauge requires looking beyond upfront cost. The right thickness depends on climate, budget, and the purpose of the building. Making a decision without considering these factors can lead to unnecessary expenses or premature roof failure.
The best approach is to balance local climate demands with budget and long-term expectations. For many homes, 26 gauge offers an ideal middle ground. Commercial or industrial projects, however, often demand the strength of 22–24 gauge panels. Consulting with a roofing professional ensures the chosen gauge matches both performance and code requirements.
The choice of roof gauge often depends on whether the project is residential or commercial. Each type of building has different structural needs, cost considerations, and performance expectations.
For most homes, 26–29 roof gauge panels are the standard choice. These gauges balance affordability with durability, making them practical for neighborhoods in moderate climates.
In areas exposed to hail, snow, or strong winds, 26-gauge offers better resilience than thinner 29-gauge panels. Homeowners often choose based on budget and how long they intend to stay in the home.
Large buildings, warehouses, and agricultural facilities typically use 22–24 roof gauge panels. The thicker metal provides superior strength and stability for long roof spans, heavy snow loads, and high-traffic environments. These gauges also extend the lifespan of commercial roofing systems, reducing disruptions from maintenance and ensuring better long-term performance.
Ready to invest in a roof that lasts? Trust GN Exteriors for expert guidance and installation tailored to your home or business. Contact our team today to schedule a consultation and discover the best roof gauge and material for your project.
Most residential projects use 26–29 gauge panels. Homeowners in mild climates often choose 29 gauge for affordability, while those in harsher regions prefer 26 gauge for added durability.
Generally, 29-gauge is not recommended for areas with heavy snow loads. Lower-gauge panels, such as 22 or 24, provide the strength needed to handle snow buildup without warping or buckling.
Yes. Many manufacturers provide longer warranties for thicker panels because they are less prone to damage. Always check the warranty terms for the specific gauge and coating system.
For long-term value, 24–26 gauge panels are often considered the sweet spot. They balance upfront cost with durability, making them suitable for most homes and businesses.
While possible, it is not recommended. Mixing gauges can lead to uneven wear, structural inconsistencies, and difficulties during installation. A uniform gauge ensures consistent performance.
Yes, lower-gauge panels are heavier and may require additional labor or stronger framing. However, their increased durability often offsets these challenges with fewer long-term issues.
